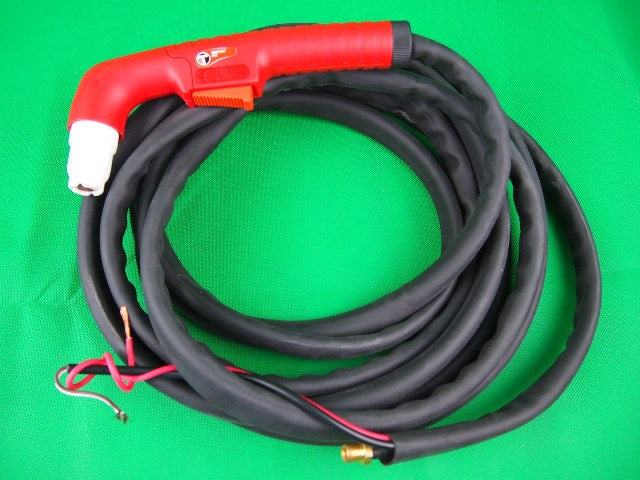

A51 ERGOCUT Trafimet 6.0 Mtr
Part Code: PA1436
Specifications
Voltage class: M
Air pressure: 5 bar
Duty cycle (50 A): 60%
Duty cycle (40 A): 100%
TRAFIMET A51
Plasma torches with high frequency.
TRAFIMET A51
The principle novelty of this torch is the integration of all the models- from 80 to 150 ampere-in a single handle.

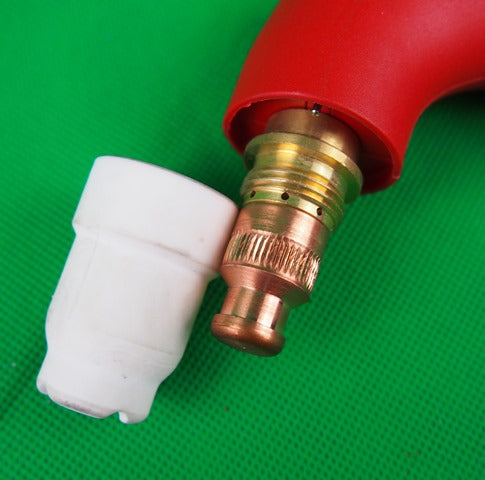

-Reparability: for the damage of a single part, it is possible now to replace it without having to buy the complete torch head.
-Protection: the torch head is integrated in the plastic handle, so it is better protected against accidental knocks that could cause damage to the torch.
-Standard: the trigger used in the handle is the same one widely used in MIG torches; the retaining screws and the ball and socket joints are the same as in the ergo tig series.
- Light weight
- Ergonomics: this handle already trialed with the first ergocut models, has had its dimensions revised so as to be able to hold larger torch bodies.
- Safety: to reduce the amount of heat striking the hand of the operator and to protect it better against cutting splash,
the grip has been moved back a few centimeters, obtaining a considerable reduction of temperature in the area of the trigger.

Plasma Cutter Spares A51 x 6.0 mtr ERGOCUT Trafimet
